Description

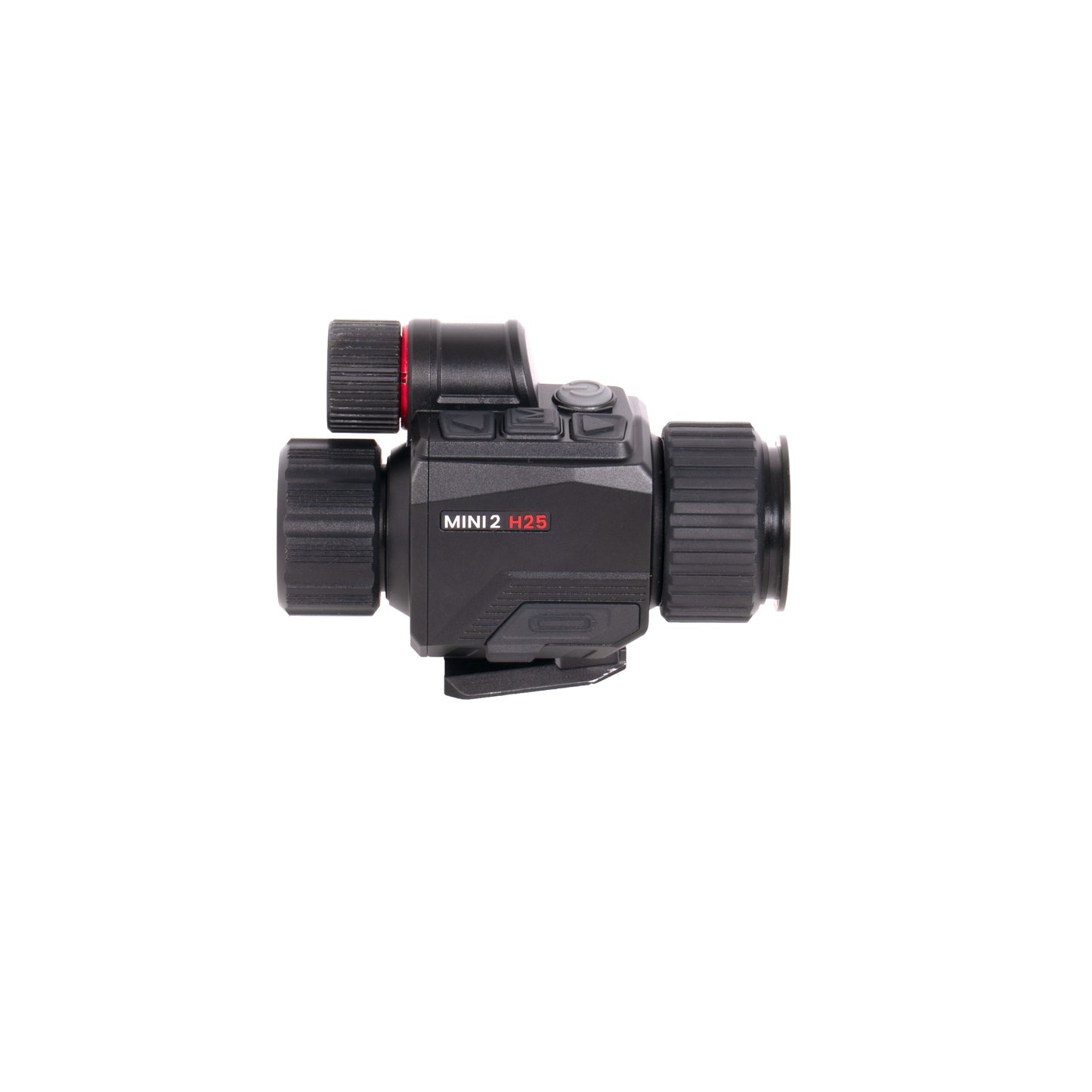

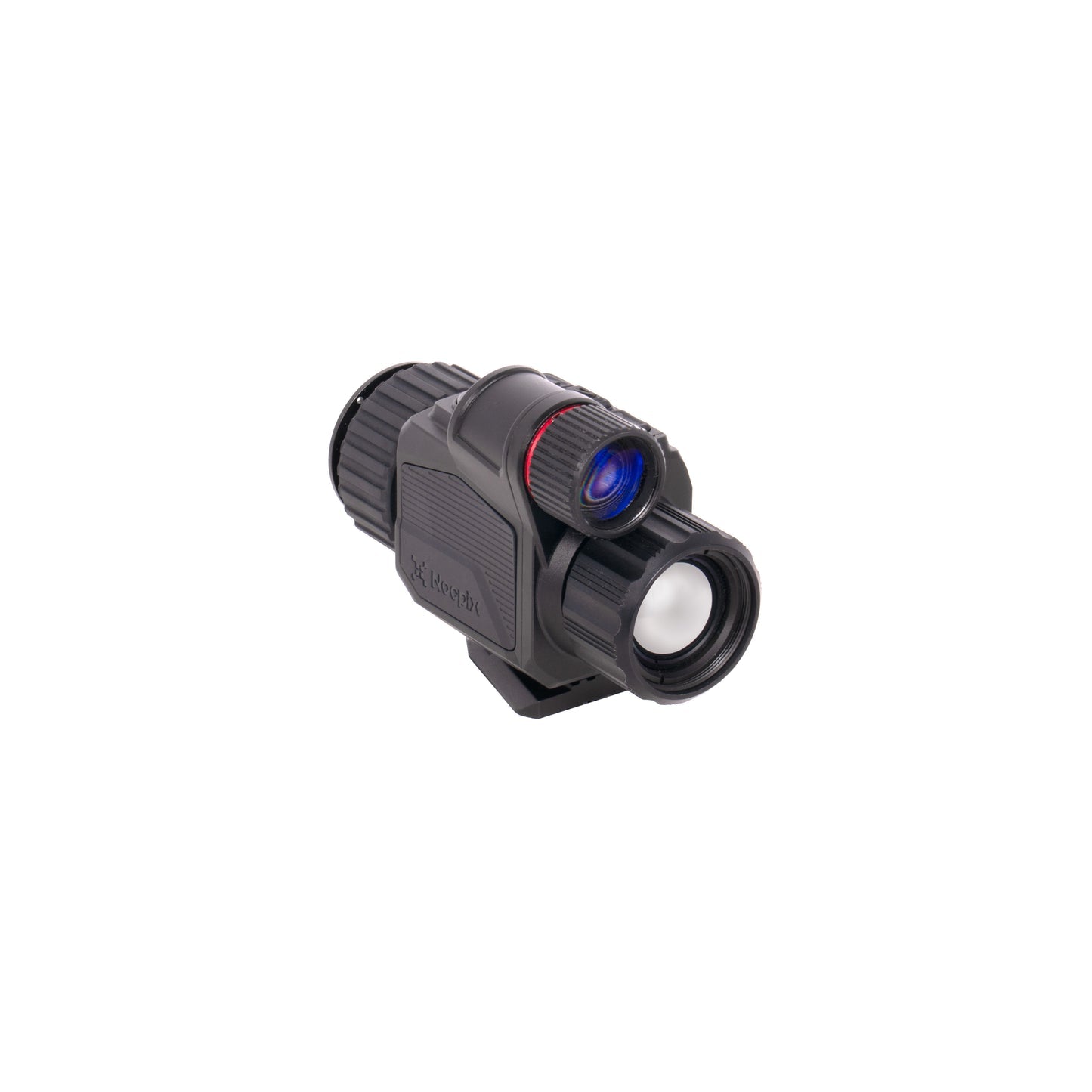

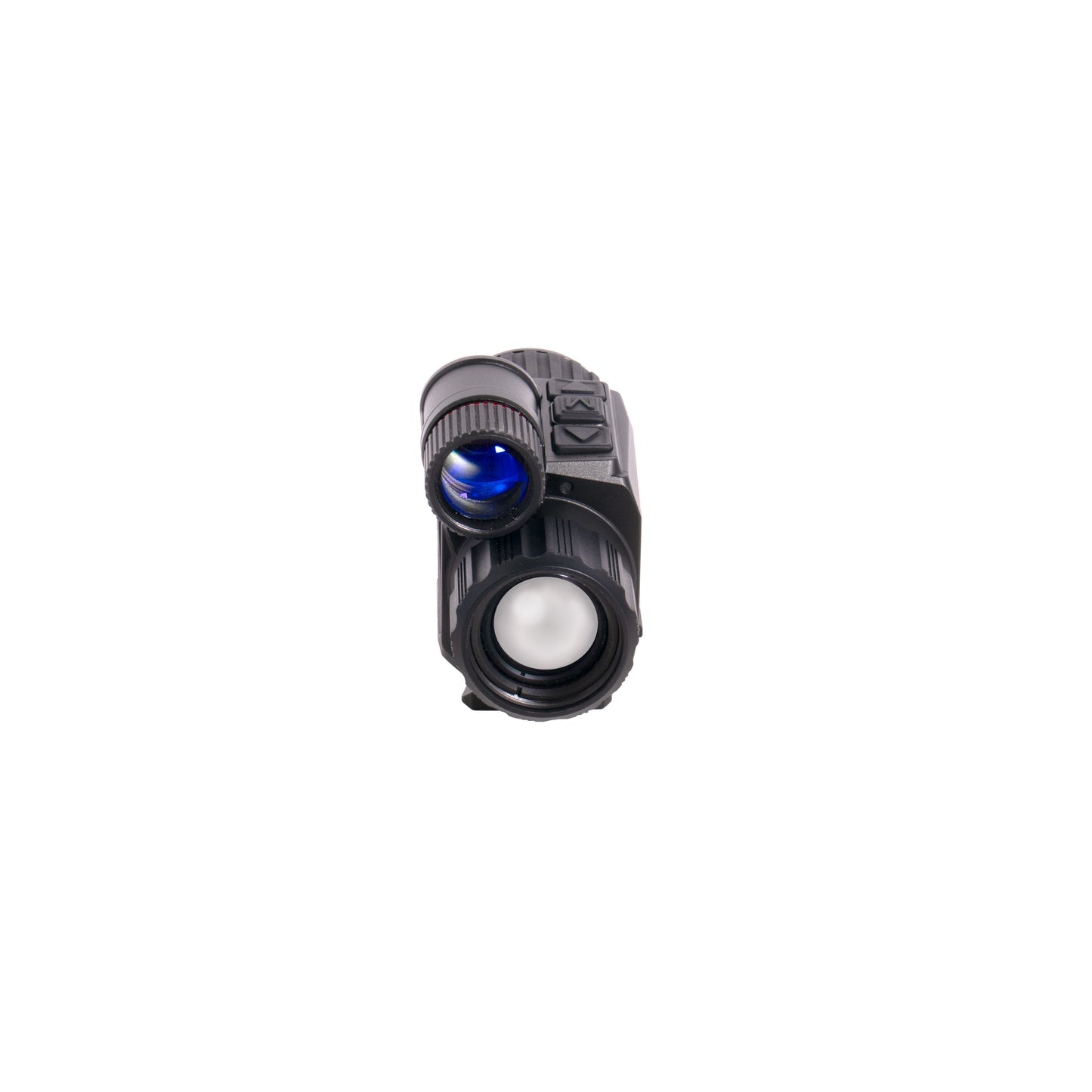

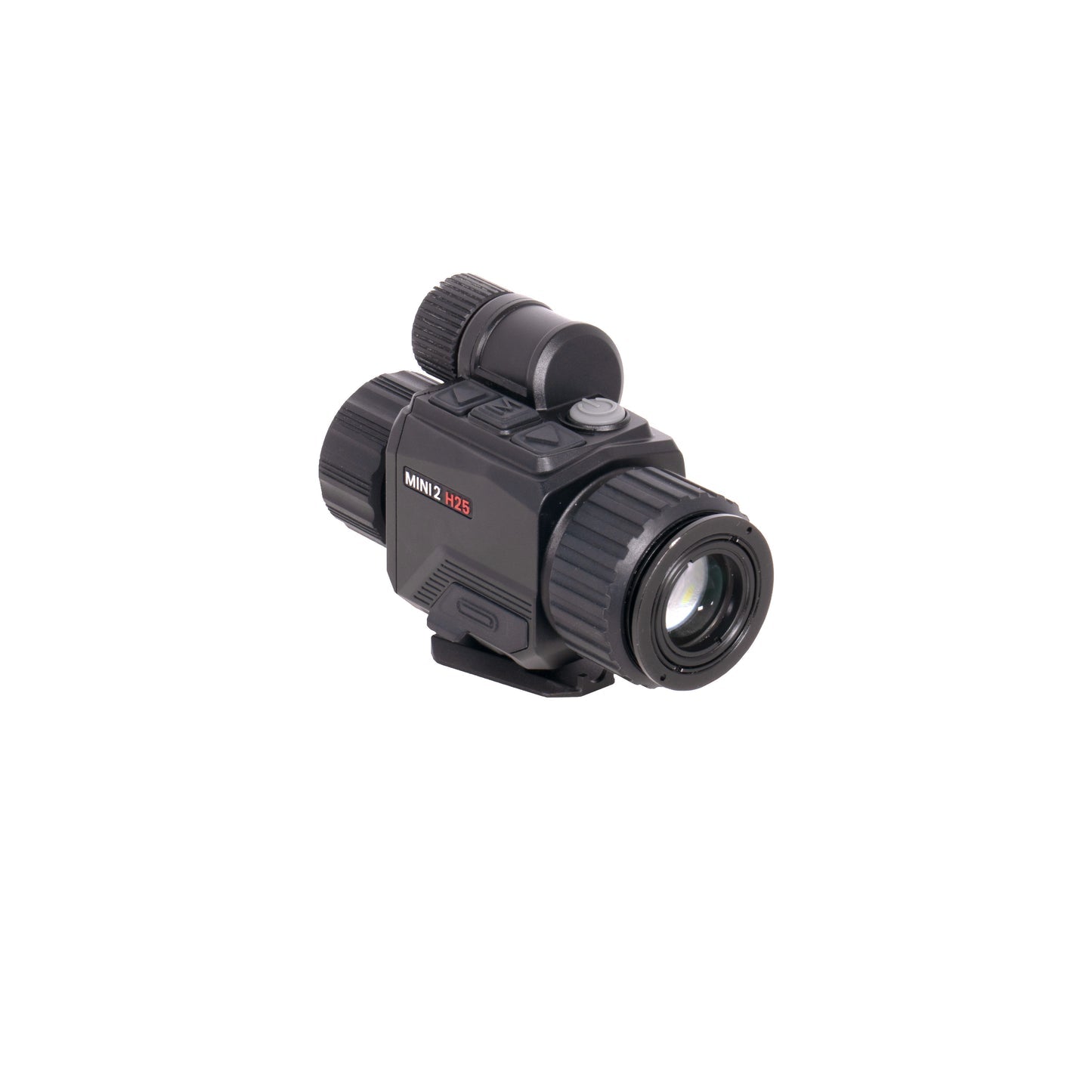

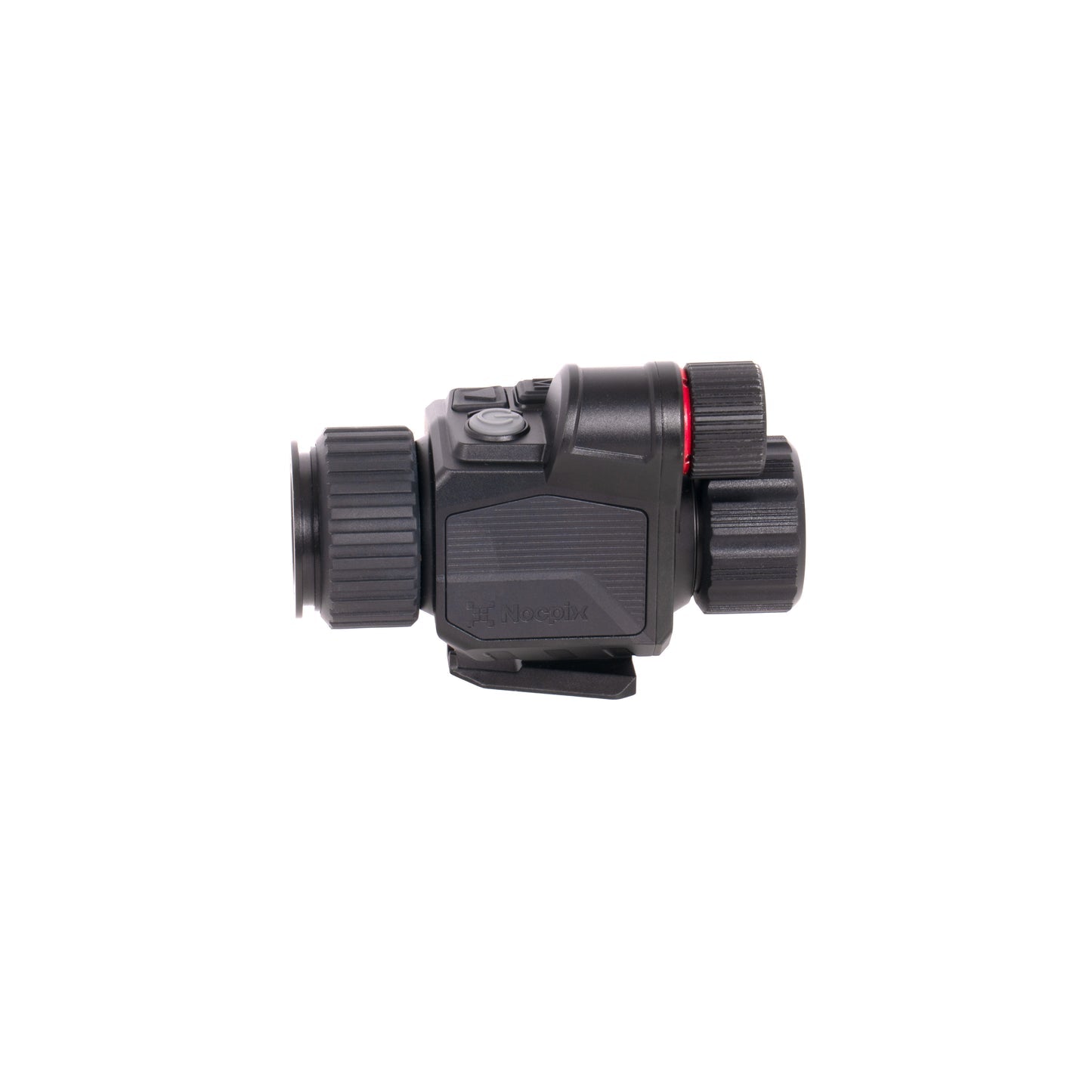

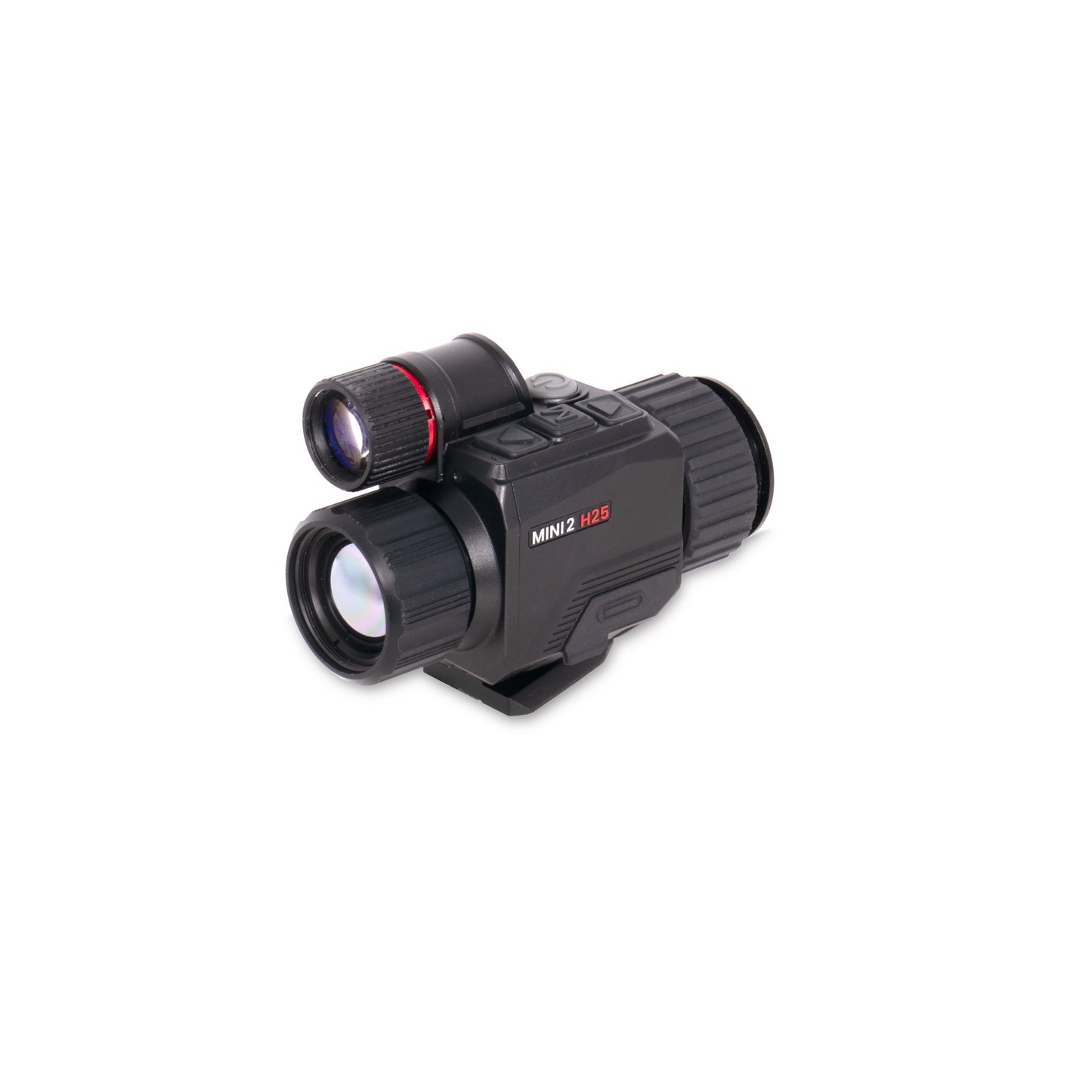

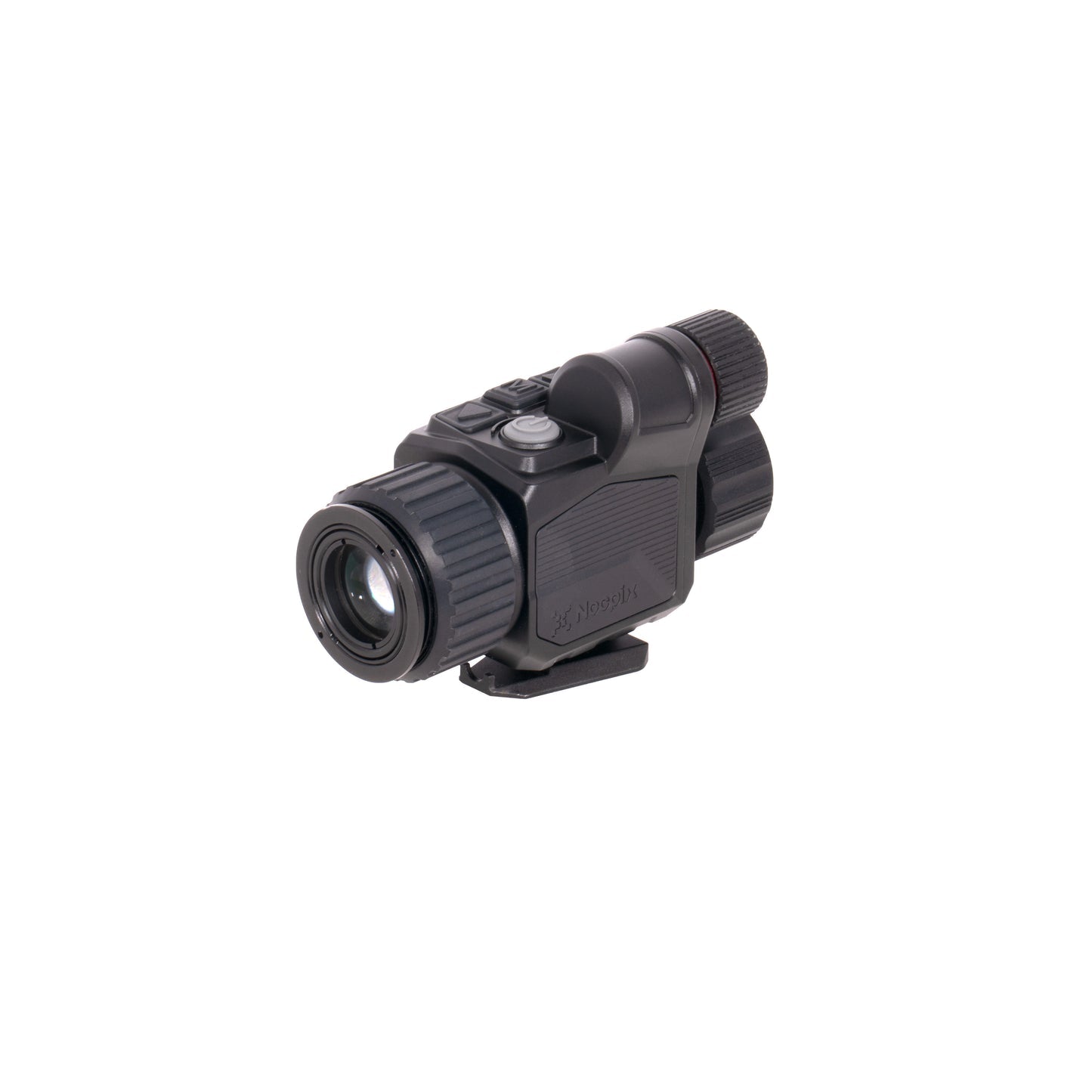

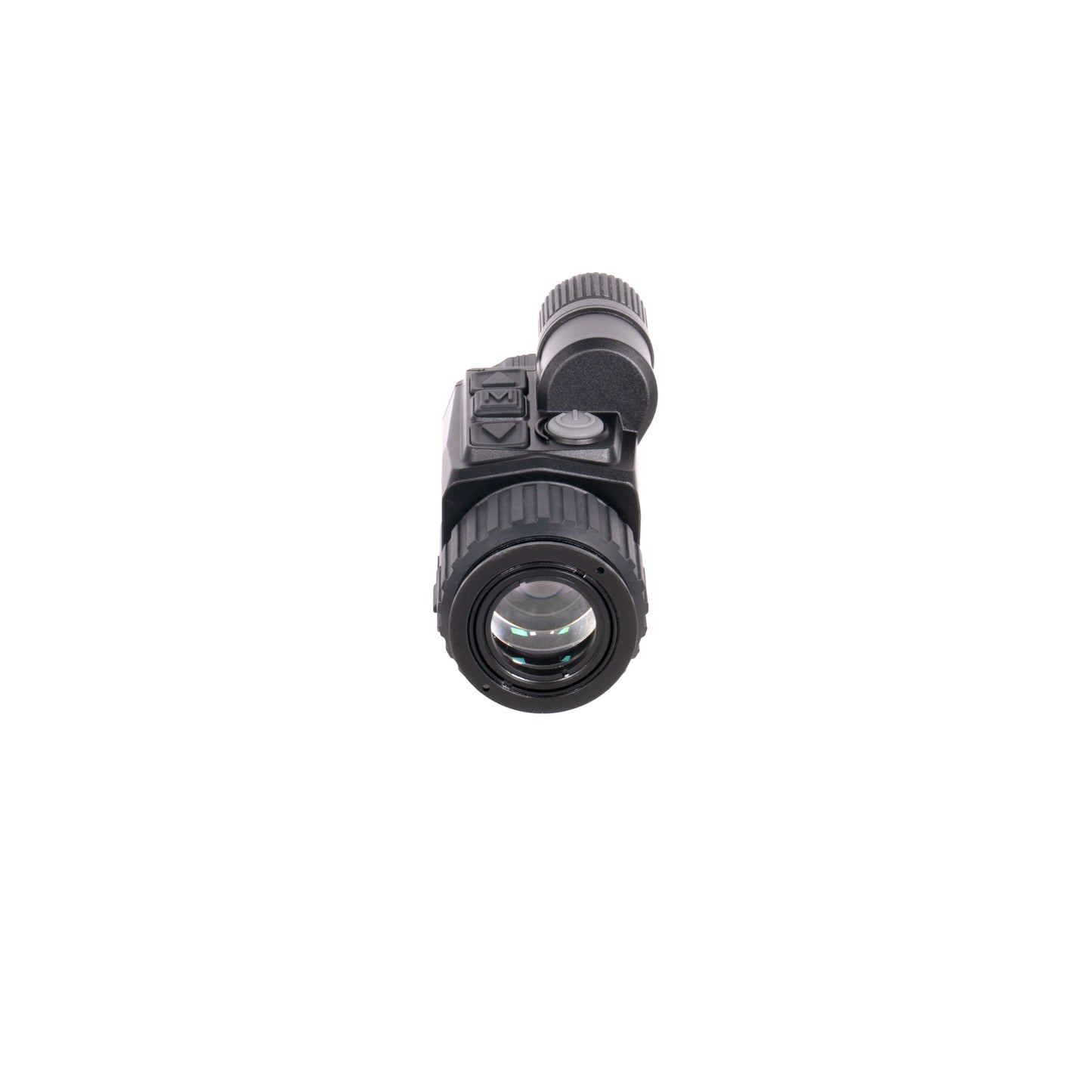

The Nocpix MINI2 H25 is a compact, true 1x monocular that combines a 640x512 thermal sensor, 960x540 digital night vision and a thermal fusion overlay in one helmet-ready device. Its integrated dovetail, 8.47-ounce body and included external helmet battery pack make it especially attractive for users who want hands-free heat detection without giving up a more recognizable view of terrain, roads, fences and structures.
Best for: Experienced hunters, ranchers, landowners, search teams and professional users who genuinely benefit from switching among thermal, digital night vision and fusion while moving or observing hands-free.
Not ideal for: Buyers who only need simple heat detection, want the lowest-cost helmet thermal or need a recoil-rated weapon sight or clip-on. The MINI2 is an observation monocular, not a riflescope or thermal clip-on.
Why choose the Nocpix MINI2 H25?
Thermal imaging and digital night vision solve different problems. Thermal makes warm animals and people stand out quickly, including in darkness and visually complicated backgrounds. Digital night vision provides a more familiar view of the surrounding scene. Fusion overlays thermal information on the digital image so the user can locate heat while retaining more environmental context.
The MINI2 H25 is most compelling when those three views solve a real problem for the user. If your only goal is lightweight helmet-mounted heat detection, a dedicated thermal such as the RIX Stride ST6 Lite is simpler and less expensive. If you want one optic that can also serve in weapon-mounted or clip-on roles, compare the iRayUSA RICO MICRO RH25 V2 instead.
Nocpix MINI2 H25 key features
-
Three viewing options: Switch among 640x512 thermal, 960x540 digital night vision and thermal fusion overlay.
-
High-sensitivity thermal channel: A 12-micron sensor, under-15 mK NETD rating and Reality+ image processing help preserve detail when temperature differences are small.
-
Smooth helmet viewing: The 60 Hz refresh rate provides fluid motion while scanning or moving.
-
True 1x base magnification: The wide 17.6 by 14.1-degree field of view is better suited to helmet use and situational awareness than a magnified thermal.
-
1280x1024 AMOLED display: A high-resolution internal display presents thermal, digital and fused images.
-
Integrated dovetail: The built-in dovetail shoe simplifies connection to a compatible helmet mounting system.
-
Included external battery pack: The internal battery and included helmet-mountable external pack provide more than four hours of published operating time.
-
Onboard recording: Capture photos plus video with audio using 32 GB of internal storage.
-
Compact aluminum housing: The monocular weighs approximately 8.47 ounces and carries an IP67 environmental rating.
Confirmed specifications
| Product |
Nocpix MINI2 H25 |
| Device type |
Handheld and helmet-mounted thermal, digital night vision and fusion monocular |
| Thermal sensor |
640x512, 12 microns |
| Digital night vision |
960x540 |
| Thermal sensitivity |
Under 15 mK |
| Refresh rate |
60 Hz |
| Objective lens |
25 mm F/1.0 germanium |
| Magnification |
1x optical, up to 4x digital |
| Field of view |
17.6 x 14.1 degrees |
| Detection range |
1,420 yards |
| Display |
1280x1024 AMOLED |
| Eye relief |
25 mm |
| Diopter adjustment |
-5 to +5 |
| Mounting interface |
Integrated dovetail shoe |
| Power |
Internal battery plus included NBP-7 external Li-ion battery pack; USB-C external power |
| Published runtime |
More than 4 hours with included external battery system |
| Recording and storage |
Photo, video and audio recording; 32 GB internal storage |
| Wireless and app |
Wi-Fi and mobile app support |
| Environmental rating |
IP67 |
| Operating temperature |
-4 to 122 degrees F |
| Dimensions |
4.00 x 1.72 x 2.54 inches |
| Weight |
8.47 ounces |
| Warranty |
5 years |
| SKU / MPN |
MINI2-H25 |
| UPC |
850048751767 |
