Description

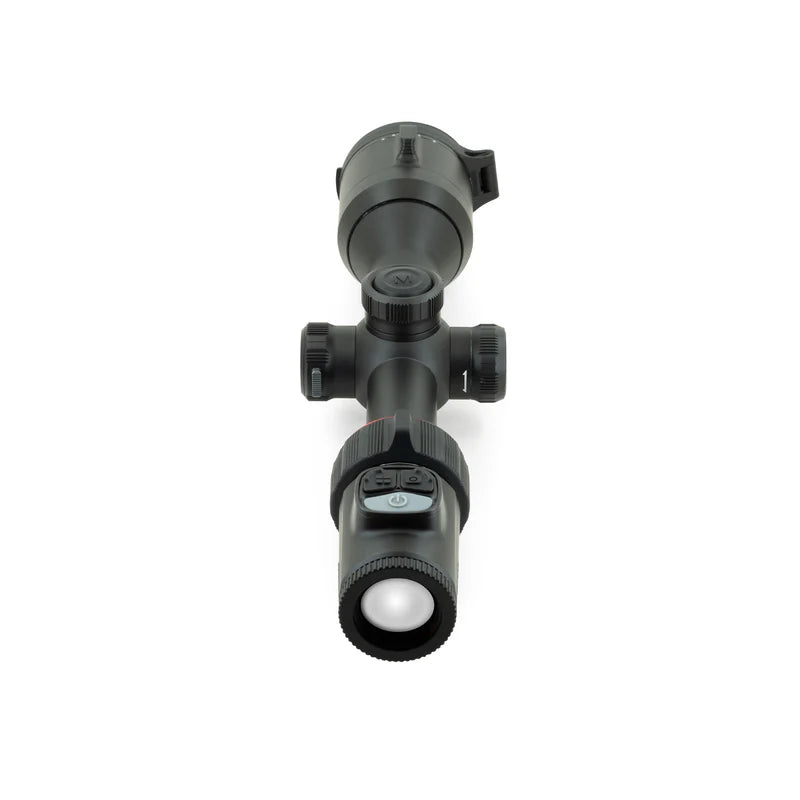

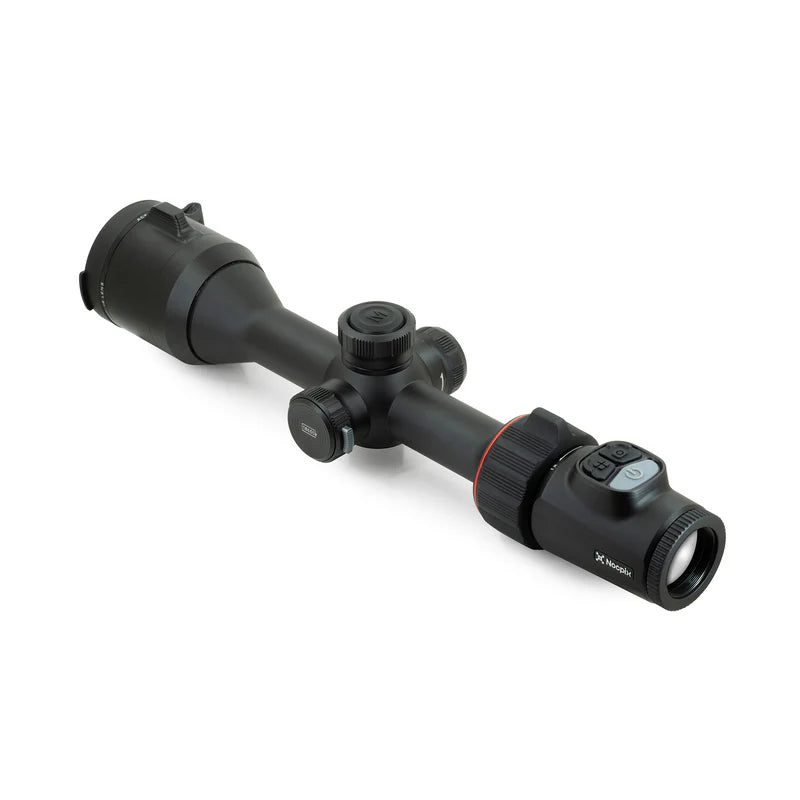

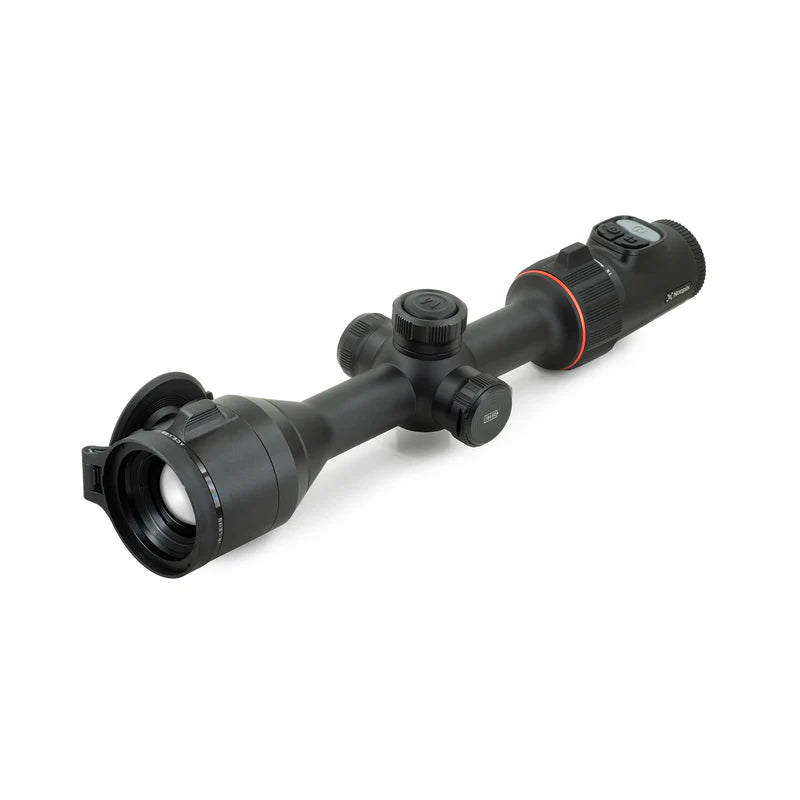

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560x2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high resolution display with a <18 mK NETD sensor for an incredibly detailed and precise image.
-
Resolution: 384x288
-
Pixel Pitch: 12 micron
-
Refresh Rate: 60hz
-
NETD: <18mk
-
Display: 2560x2560
-
Base Magnification: 3x
-
Digital Zoom: 12x
-
Field of View: 40ft @ 100 yards
-
LRF: No
-
Ballistic Calculator: No
-
*Detection Range (6ft Tall Object): 1,970 yards
-
Battery Type: Internal 18650 and an external 18650
battery
-
Battery Run Time: 3 hrs removable/4 hrs internal (Approximate)
-
Recoil Rating: .300 WIN. Mag./ 7mm Mag.
-
Video/Audio Recording: Yes
-
Streaming App: Yes
-
Single Shot Zero: Yes
-
Color Palettes: White Hot, Black Hot, Red Hot, Color, Crimson, Viridian, Violet
-
Mount Included: Yes – Nocpix 30mm QD Mount
-
Waterproof Rating: IPX67
-
Weight: 2lb 4oz
-
Dimensions: 13.78”x3.54”x2.44”
