Description

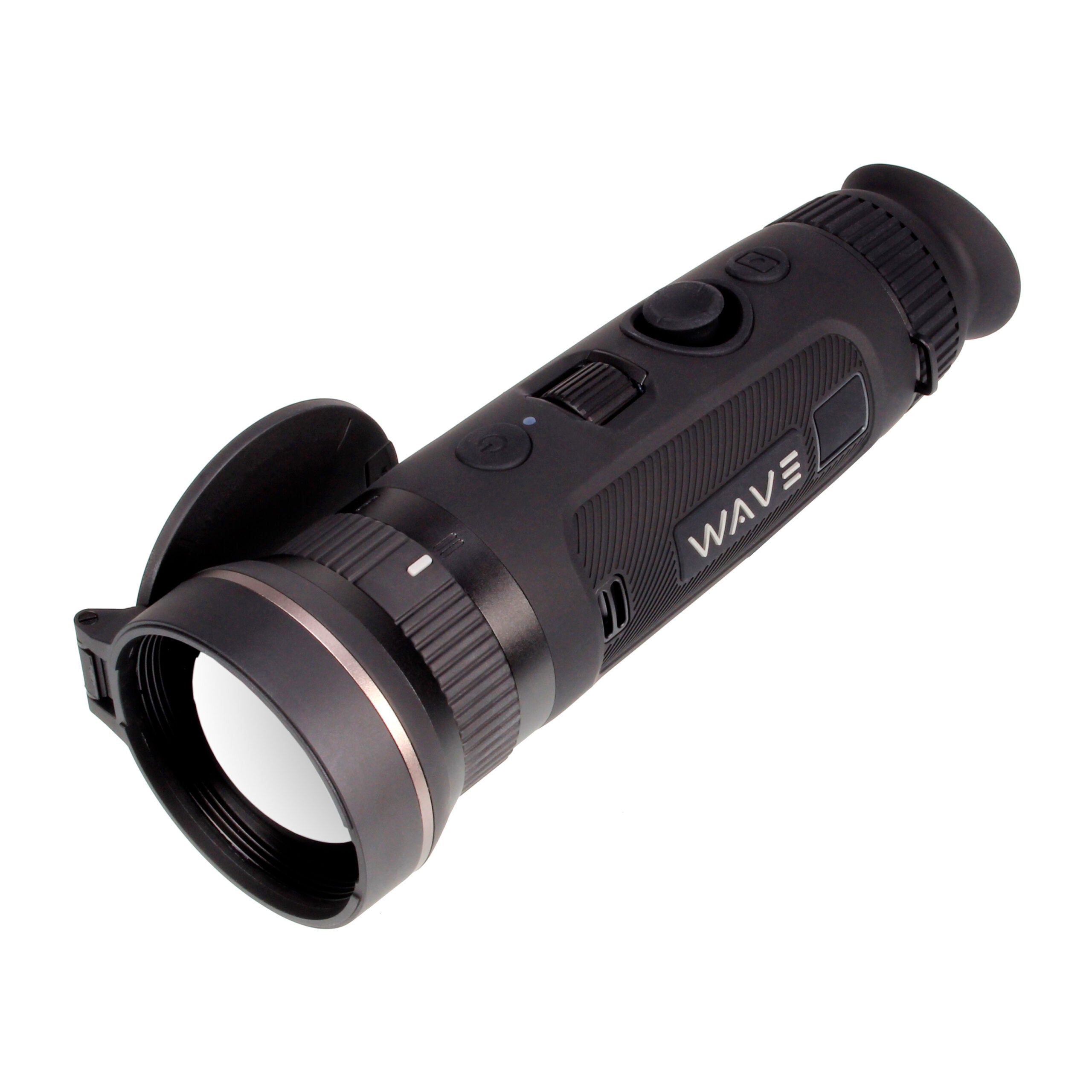

Experience elite thermal clarity and flexibility with the WAVE HORIZON 650D Infrared Dual-Lens Thermal Monocular. Featuring a 640×512 12μm sensor and dual f/0.9 lenses (25mm & 50mm), it delivers crisp imaging and long-range detection beyond 2800 yards. Enjoy AI-powered ranging, target tagging, onboard recording, and live streaming—all in a rugged, compact build backed by a 5-Year Transferable Warranty.
Sensor Resolution: 640 x 512
Pixel Pitch: 12 um
NETD: <15mK
Spectral Range: 750 to 1400 um
Refresh Rate: 50 HZ
Detection Range: >2800 Yards @ 50mm
Objective Lens Primary: 50mm / F0.9
Objective Lens Secondary: 25mm / F0.9
Magnification @ 20mm Focal Length: 1.5x to 6.0x
Magnification @ 50mm Focal Length: 3.0x to 12.0x
Field of View @ 25mm Focal Length: 930′ @ 1000 Yards
Field of View @ 50mm Focal Length: 465′ @ 1000 Yards
Body Housing: Magnesium
Eye Relief: 50mm
Exit Pupil: 6.6mm
Display Resolution: HD AMOLED / 1024 x 768
Photo/Video Capability: Yes
Audio Recording: Yes
Internal Memory: 64 GB
Scene Color Palettes: 6 (White, Black, Red, Green, Violet, Gold)
Image Stability: Yes
Digital Zoom: 4X
USB-C Data Output: Yes
Length / Weight: 7.4 inches / 23 oz.
Artificial Intelligence Ranging: Yes with Target Tagging
WIFI: Yes / 100′ Connectivity
Neck Lanyard and Hand Strap: Yes – Included
Tripod Mountable: Yes
Onboard Charging: Yes
Battery Type: (x1) 18650 Protected
Battery Life: 9+ Hours
Internal Battery: Yes (User Serviceable / Replacable)
Waterproof: IP67
WAVE INFRARED APP: YES, IOS and Android
Real-Time Live Streaming: Yes
Low Operational Temperature: -20 Degrees Fahrenheit
High Operational Temperature: 130 Degrees Fahrenheit
Warranty: 5 Years
UPC: 85003045943
