Description

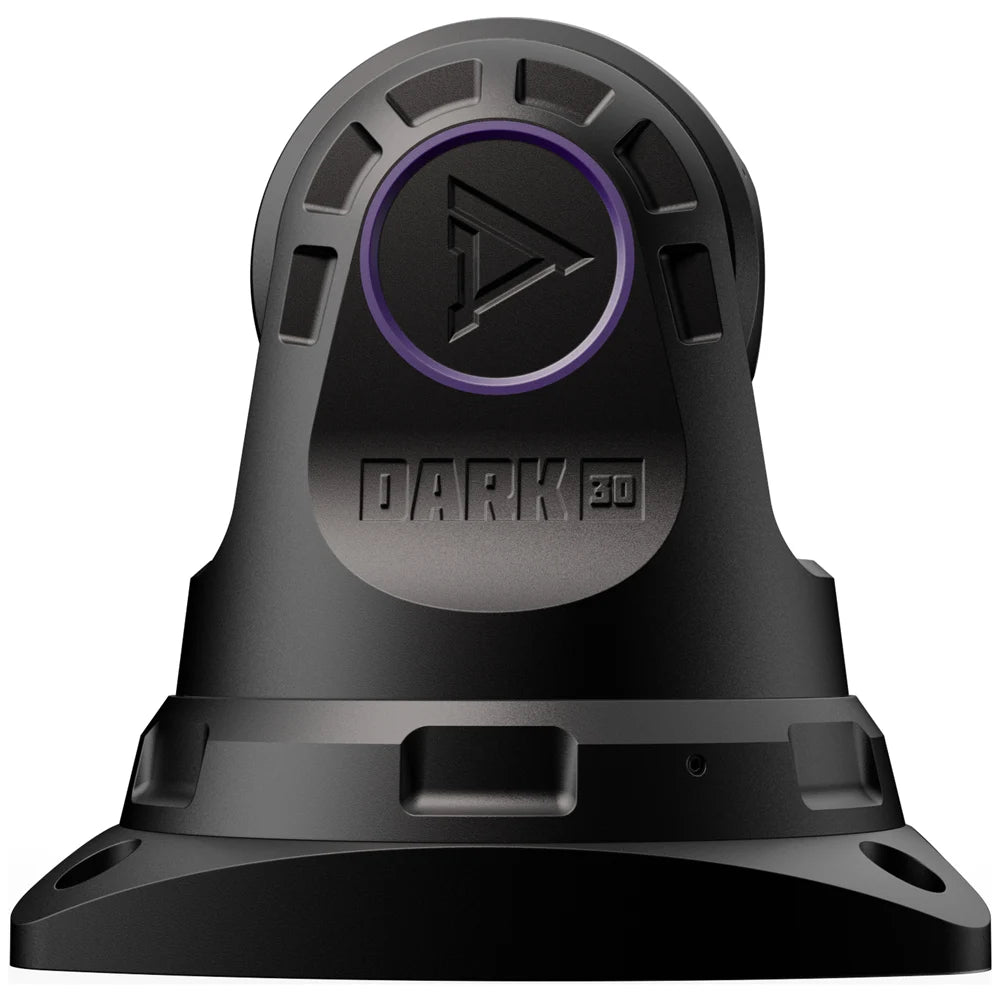

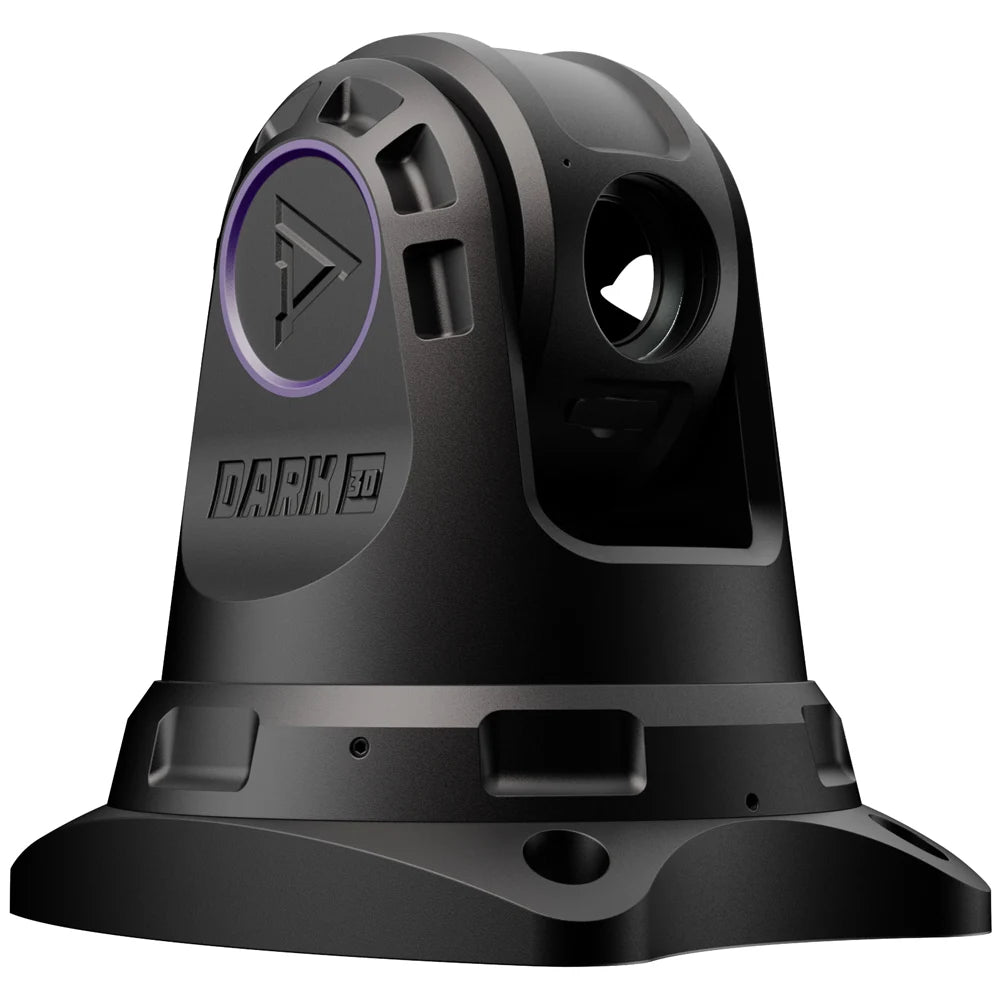

The DARK 30 thermal PTZ camera is a roof-mounted system that enhances scanning capabilities while onboard a vehicle. If you are a night hunter, this is the system for you—the DARK 30 features video recording, gyro stabilization, and mobile app connectivity with wireless streaming. The kit has everything to add thermal to any vehicle, including power and signal wiring harnesses and an easy-to-use wired thumbstick controller. In just a few minutes, you can add it to any vehicle.
General
Water Resistance IP66
Pan angle Continuous 360°
Tilt angle: Straight downward to 45 degrees above horizontal
Body Material Aluminum
Width 6.65”
Depth 7.68“
Height 7.8”
Weight 111 oz
Operating Temperature Range °F
-4°F x 122°F
Ports 1 TF card slot, 2 HDMI ports, 2 DC ports
Display type LCD
Screen Size 10.1”
Sensor
Device Technology Thermal Imaging
Sensor resolution, pixels 640×480
Frame rate 60 fps
Pixel size 17 micron
Spectral range 8 – 14μm
Detector NEDT <30 mK
Color palettes 5
Detection range yd 1250 yds
Optics
Lens material Germanium
F/# NUMBER (lens) 1
Lens diameter 32 mm
Focal length 30 mm
Digital zoom 1-8x
Magnification n/a
Field of View Horizontal 20°
Field of View Vertical 15°
Field of View Diagonal 25°
Power
Power Supply 12VDC
Camera Amperage @12V DC 750mA
Display Amperage @ 12VDC 320mA
Adaptor Connection with both Camera and Display 1200mA
